Set: Y-Mount / Stabilizer Fork

Available from March 2025!

Set consisting of:

1x Y-Mount

1x Stabilizer Fork

Y-MOUNT - the innovative 4-point saddle rail mounting system (patent pending)

Suitable for most saddle models, weighs only 31g and carries up to 6kg. For the simple and stable mounting of saddle bags, bottle holders, stabilizers, rear light holders and other Y-mount products.

• universally suitable for round and oval seat stays (carbon, titanium, steel)
• stable and safe thanks to 4-point clamping
• quick change of bags and accessories
• manufactured in 3D Layup Carbon technology
• polished visible carbon surface
• aerodynamically optimized design
• Grade 5 titanium screws for maximum strength

The Y-Mount is mounted on the seat stays and is extremely stable and resilient thanks to its unique 4-point design (patent pending). Thanks to its low weight of just 31g and its aerodynamically optimized shape, it can remain permanently on the bike and serves as a stable mount for bags, bottle holders and other accessories. The ultra-light and resilient mounting solution for high-quality bikes.

Ideal for:

• Bikepacking (bags)
• Triathlon and time trial bikes (water bottle holders)
• Road and gravel bikes, mountain bikes (small bags, rear light and GoPro mount)

Stabilizer Fork - the solution for fixing and stabilizing saddlebags

The Stabilizer Fork is a real all-rounder. It is used both to attach our Y-Mount Saddle Bags and to stabilize saddle bags from other manufacturers.

The Stabilizer Fork is attached to the Y-Mount with two titanium screws and effectively prevents saddlebags from swinging or rocking. The strap supplied is long enough to cross under the bag, which leads to optimal stability even for heavily loaded bags. Instead of the strap attachment around the seat stays that is usual for saddlebags, the Stabilizer Fork takes the weight.

Optionally, you can attach a sleeping bag or dry bag to your bag thanks to the long holes at the ends of the forks.

The Stabilizer Fork is manufactured using the 3D layup carbon process and can support loads of up to 6kg. The intelligent fiber guidance enables maximum strength with low weight.

• suitable for many saddlebags (e.g. Ortlieb, Apidura, Cyclite)

• Weight 31g (including titanium screws)
• Grade 5 titanium screws for Y-mount assembly
• manufactured in 3D layup carbon technology
• polished visible carbon surface
• Possibility to attach a drybag or sleeping bag on top

Y-Mount
Material: Carbon manufactured in 3D layup technology
Weight: 31g
Max. load capacity: (depending on accessories): 6kg
Screws: Titanium Grade5, Torx T20
Material Yokes: AL7075

Suitable for most saddle models, maximum clamp width of the seat post on the seat rails: 60mm

For round or oval seat stays made of carbon, titanium or steel (please select variant)

Note: The variants for round and oval seat stays only differ in the screw lengths. The variant for oval seat stays (7x9) also fits round seat stays (7x7), but then the screws protrude a little. We offer screw sets for oval and round seat stays separately, so that you can also convert your Y-mount later.

Stabilizer Fork
Material: Carbon
Surface: visible carbon, polished
Weight 31g
maximum load capacity: up to 6kg (depending on the weight distribution of the bag)
Screws: Titan G5, Torx T20
Fork ends: for 12-15mm belts
Strap: Length 170mm
compatible with many saddlebags (e.g. Ortlieb, Apidura, Cyclite)

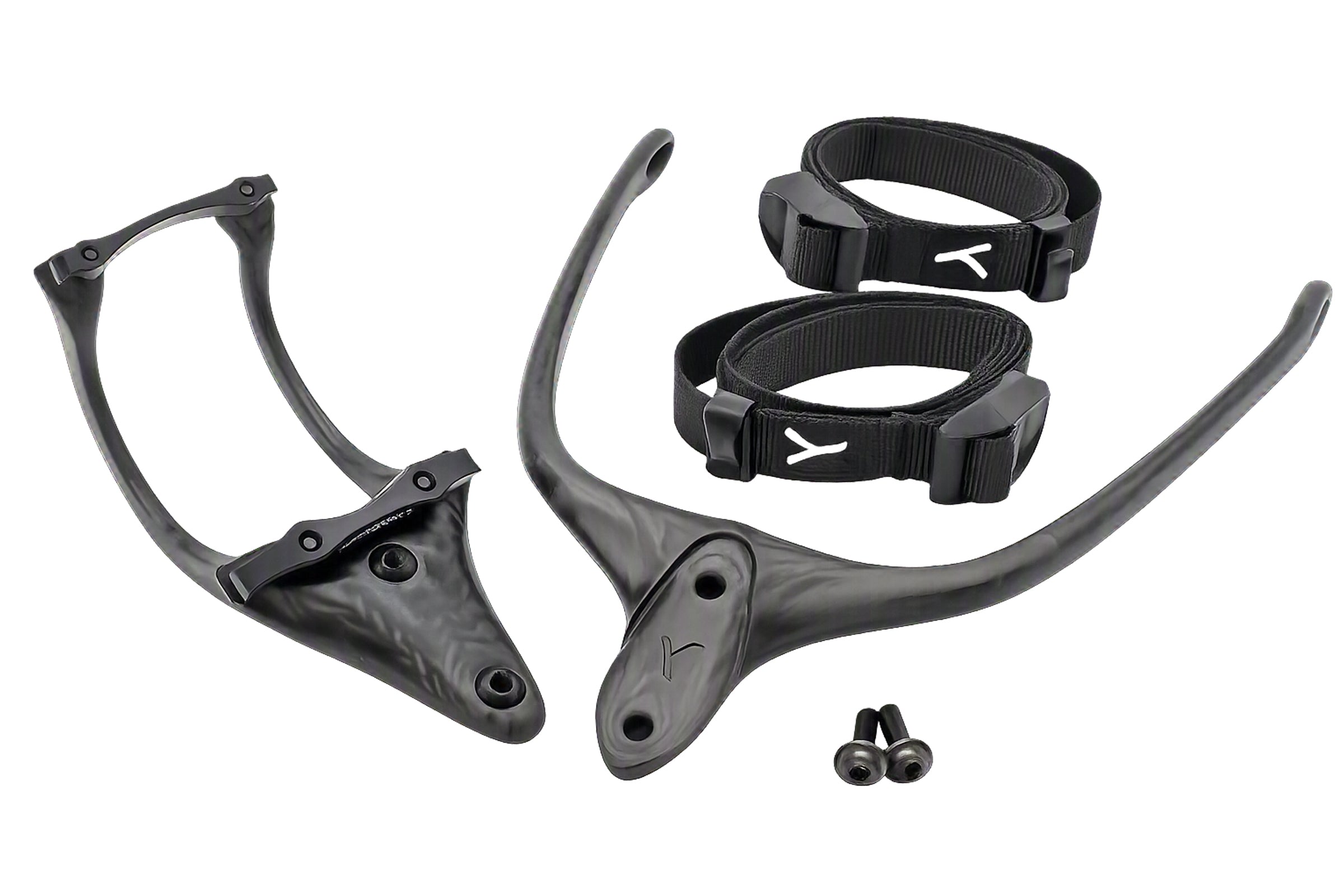

Total weight Y-Mount, Stabilizer Fork, titanium screws, Ultralight straps: 77g

1x Y-Mount
1x Stabilizer Fork with titanium screws
1x Ultralight strap
